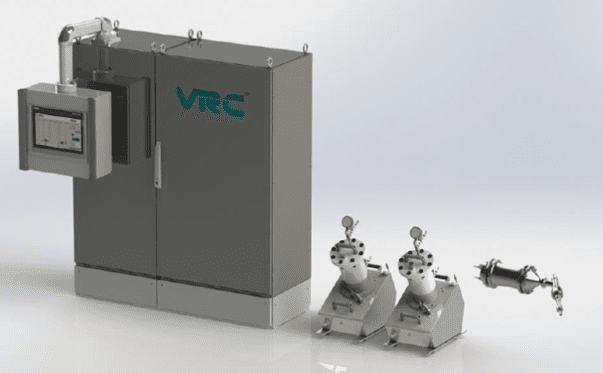

GEN IV® HIGH-PRESSURE COLD SPRAY SYSTEM
VRC’s GEN IV® High-Pressure Cold Spray System comes with our new 21kW applicator heater and dual powder feeders. The GEN IV® has a functionally designed closed loop water chiller and water jacket for nozzle cooling.
This system is perfect for laboratories, universities, research facilities and high production environments. It can operate on either air, Nitrogen and Helium, while using Nitrogen for the heat up and cool down periods. It has the ability for data recording of all process parameters at 1 Hz interval, recorded in simple .csv format. The User is able to operate the GEN IV® easily with the HMI pendant for recipe selection and input.
- Separate Gas Train and Electrical Cabinets
- System pressure up to 1000 PSI (69 Bar)
- RT-900°C (RT-1650°F) with Cooling and RT-700°C (RT-1292°F) without Cooling
- Liquid Chiller Included for Nozzle Cooling
- Multiple Gas Capable – Nitrogen, Helium or Air
- Two powder feeders included with the capability of four total
- Powder mixing
- Full touch screen controls
The GEN IV® Is Made For
Research
Industrial
Laboratories
Universities
