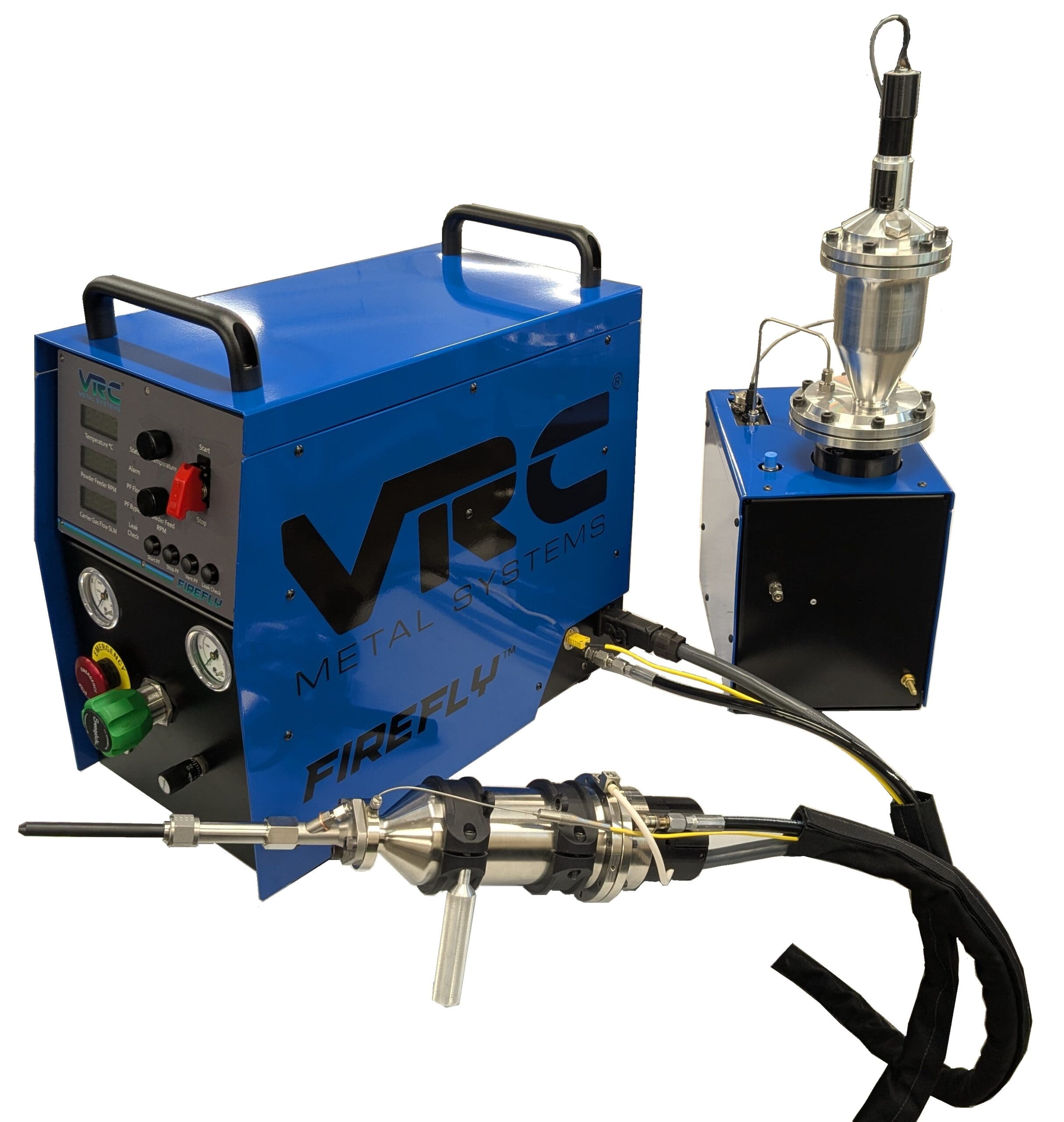

FIREFLY™ MEDIUM-PRESSURE COLD SPRAY SYSTEM
FIREFLY™ Lightweight and Highly Portable Medium-Pressure High Temperature Cold Spray System
The system operates at 500 PSI with nitrogen and can reach 700°C with nitrogen for extended sprays. It maintains a maximum surface temperature below 40°C until the nozzle attachment flange. It has demonstrated consistent feeding of 1-5 micron nickel and copper powders, as well as stable powder feed gas flow to 25 LPM. Designed for efficiency, the system runs on a single-phase 220V, 30-amp circuit and achieves 90% heater efficiency based on flow, kilowatt usage, and resulting applicator temperature.
- 100 - 500 psi (6.9-35 bar) pressure
- RT-700°C temperature capable
- Multiple nozzle/applicator options for easy optimization
- Hand or Robotic Operation
- Advanced powder feeder with simple cleanout and consistent feeding for the widest range of powders
- Special line of powders enabling deposition of advanced materials
DESIGN
- Low-cost design
- Highly portable - similar to a welder
- Simple to setup - minimal connection points
- Optimized line of powders to match process specifications with performance
- Able to achieve high quality deposits with high strength materials
- Nickel, Stainless, Carbide blends
- Size optimized to match achievable process conditions
- Build on Gen IV applicator heater design to achieve high heating efficiency and long heater life
THE DETAILS
- Simple to remove vessel for cleanout and weighing
- Section design allowing for fine powder feeding
- Durable low cost motor and gearbox
- Durable and easy to clean drive features
DEMO SETUP
RECIPE PARAMETERS
- House Nitrogen
- 600-700°C
- 500 psi
- 45 SLM GC
- 4cc/min powder feed
SYSTEM INFORMATION
- LC System Day of Demo
- Long WC Nozzle
MATERIALS
- Substrates
- A36 with BC01
- 6061 AL no bondcoat
- Coating – new optimized Ni-CrC
- Developed for LC System under Army COE IR Project
